DP 0105 Kompresor pompa próżniowa Nitto Kohki 12 Vdc | 2,8 l/min
DP 0105 Kompresor pompa próżniowa Nitto Kohki 12 Vdc | 2,8 l/min

DP 0105 Kompresor pompa próżniowa Nitto Kohki 12 Vdc | 2,8 l/min

Last items in stock
446.16 zł
Tax included

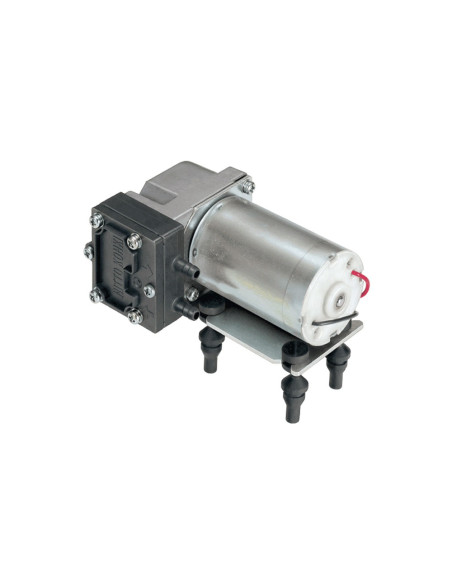

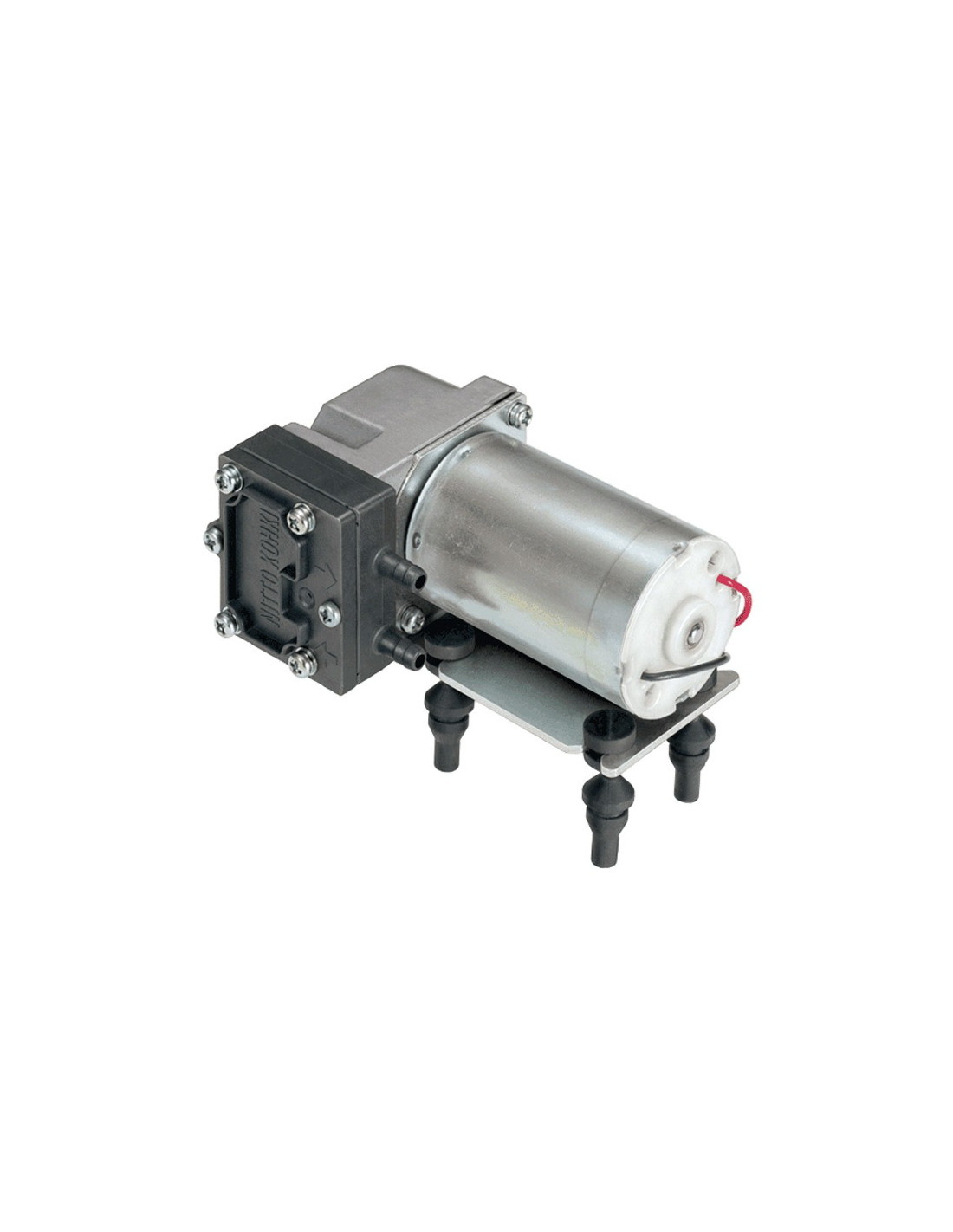

DP 0105 Compressor and Vacuum Pump Nitto Kohki 12 Vdc with the brush motor is used, for example, in vending machines or endoscopes.

Specifications

Attainable Vacuum: -666 mbar
Free Air Displacement: 2.8 l/min
Rated Voltage: 12 V
Maximum Pressure: 2.5 bar
Maximum Current: 1.2A or less for 12V
0.6A or less for 24V
Duty Cycle: 30 minutes
Life Expectancy: 1.000 h
Outlet (Inlet): 5mm O.D. straight nipple
Coil Insulation Class: E or its equivalent (JETL)
Mounting Dimensions (L x W): 42 x 24.5 mm
Gross Weight: 0.36 kg

Nitto Kohki
DP0105-X1-0001
1 Item
