CPA Triplex H medical vacuum system DVP | 75–915 m³/h

Ask about product

Out-of-Stock

0.00 zł

Tax included

Description

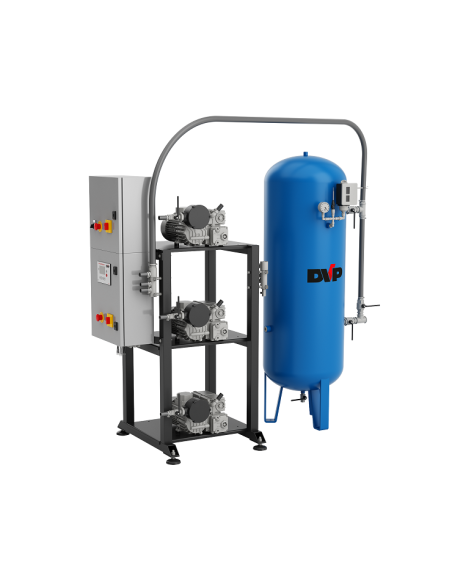

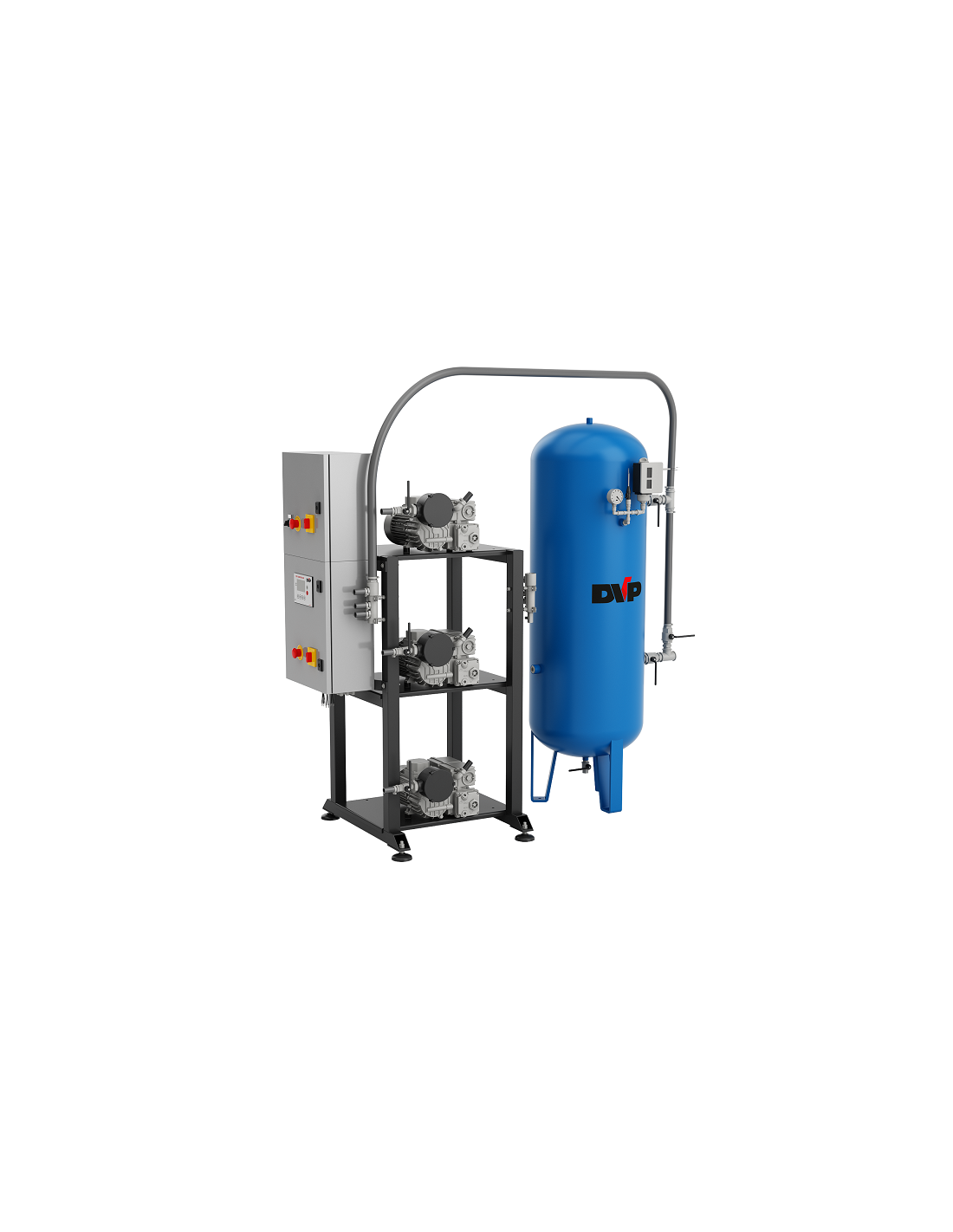

CPA Triplex H medical vacuum system DVP is primarily used in hospital environments. It is based on industrial vacuum systems with a triple-lubricated rotary vane vacuum pump with an IE3 motor and a vertical, welded, sealed, painted steel tank. The CPA Triplex H medical vacuum systems are designed in accordance with the requirements of the EN ISO 7396-1 standard. Using CPA Triplex vacuum systems is beneficial in terms of energy savings, as pump on/off cycles are automatically optimized based on the vacuum demand within the system, based on user needs.

Key Features:

Nominal capacity: 75 – 915 m³/h
PLC control panel with touchscreen in 8 selectable languages
Standard internet connection for remote access, with easy access to the PLC control panel from a computer or smartphone
Remote assistance
Reading and downloading data from sensors, alarms, and user logins
Data storage
Email alerts
Sensors: plant vacuum sensor, ammeter transducer, room thermometer (optional: oil level sensor, oil thermometer, oil separator filter pressure sensor)
Parameter management tailored to plant needs
